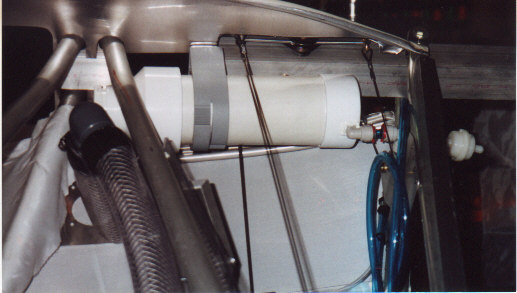

This is fabricated out of Schedule 10 PVC 3" Pipe. I used one end cap and a
3" x 1" reducer coupling on the other (Front) end. A 90 degree elbow
off-set on a 45 allow it to go up into the gap seal and there I put on a screwed
cap. I can fill this from the outside of the A/C. I also used 1/4" line and
bulkhead fittings to make a visual indicator out on the side of the craft. I
vented the cap and used approved line to run back to the injection pump. I have
a special bracket (pipe hanger) that anyone can use if they want to try this.

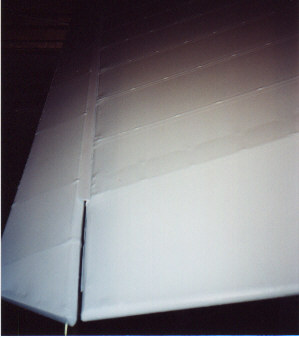

On the recommendation from RANS (they sell only one size so if you order the
GAP SEALS, they will know what you want) I did the following... They are
made w/one side rounded that goes on the trailing edges. I ordered
42' so I could apply it seamless. I'm so anal, I had to "round the
edges" on the ends so they looked "pretty". I drill and

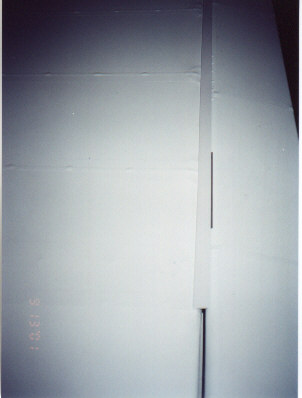

placed a rivet (1/8" steel) every 8-10". After installing, you
can bend them slightly to clear any ail/vert/horz stab so proper angles are
