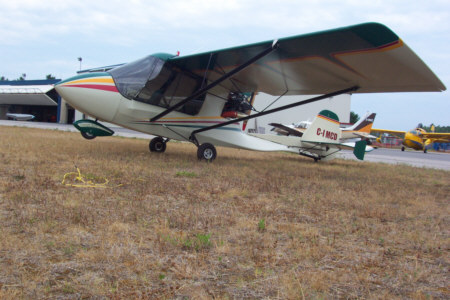

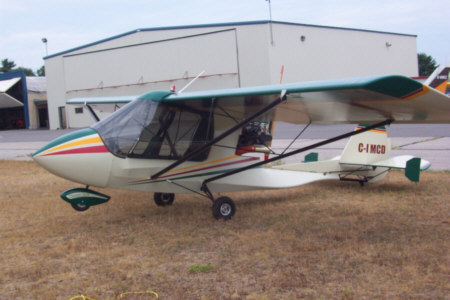

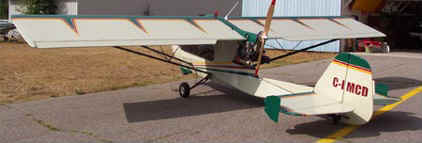

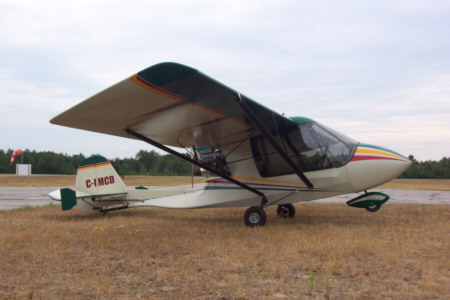

Here is a picture of my
2000 (1998 airframe) Challenger CII. Its is a standard wing, with
fiberglass wingtips, aluminum leading edge, flaperons "shortened",
horizontal tail finlets, widened cockpit, high side rails, cabin heater,15 gal
Turbulence fuel tank, Turbulence Interior pkg. , Tracey O'Brien Hydraulic
Brakes, Back Forty Spring gear, electric fuel pump, ELT, ICOM A5 with
external antenna, Garmin GPS, full instruments.
"MCD" will cruise 80
- 85 mph all day, and if you want to push it.... 90 mph. This Challenger
was built for me by Freedom Flight, Terry Mayhew....manufacturer of Back Forty
gear, as my family, social, work commitments did not allow the luxury of
building it myself.

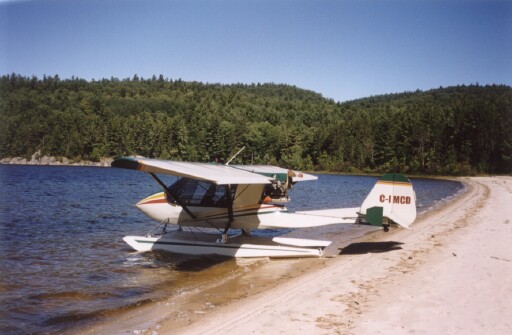

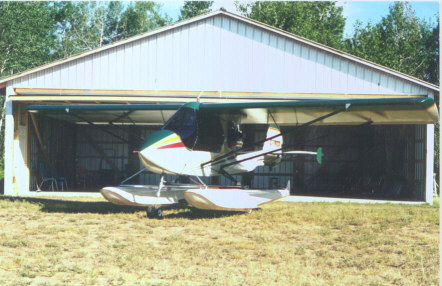

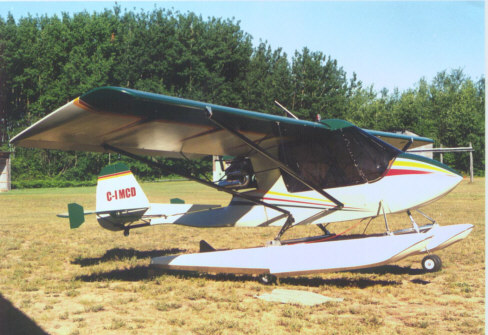

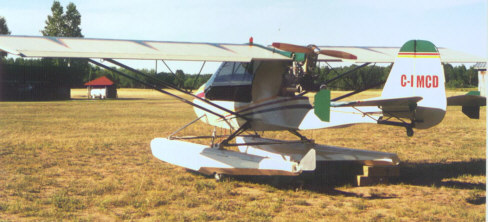

MCD on Puddlejumper floats

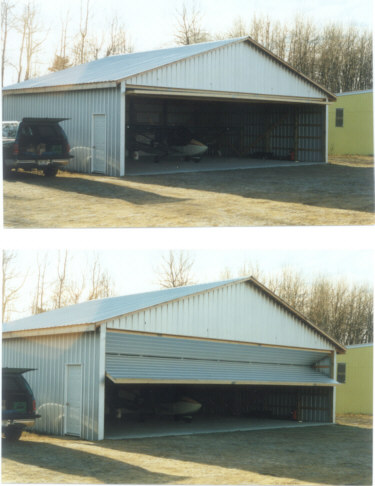

||Hangar is 30' X 40', 4" thick concrete
floor, the door is made with a 4' top section and a 6' bottom section. The
door is raised by a hand chain operated hand wheel, which turns a
1" steel shaft connected to (4) - 8" overhead door cable drums.
(3) - 8" cable drums are mounted backwards on the steel shaft,
connected to 3 - 80 lb counter weights on the back wall of the
hangar. The door is almost neutral, requiring little effort to raise. The
4 cables going out the front of the hangar, lift the door straight up,
leaving 2' of door sticking out the front of the hangar in the open
position, and 9'-2" of clear opening. Less than 45 sec. to open
or close door.
