Jay's latest project
 |

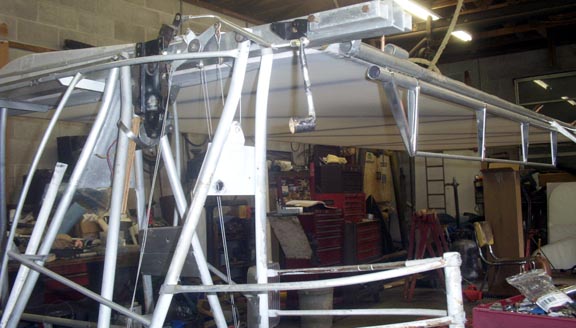

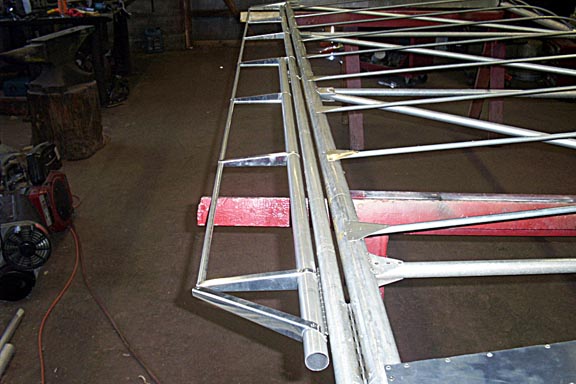

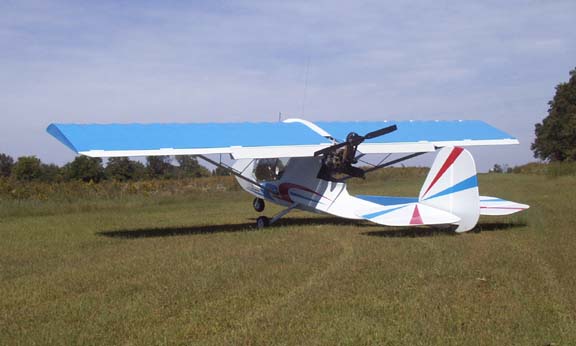

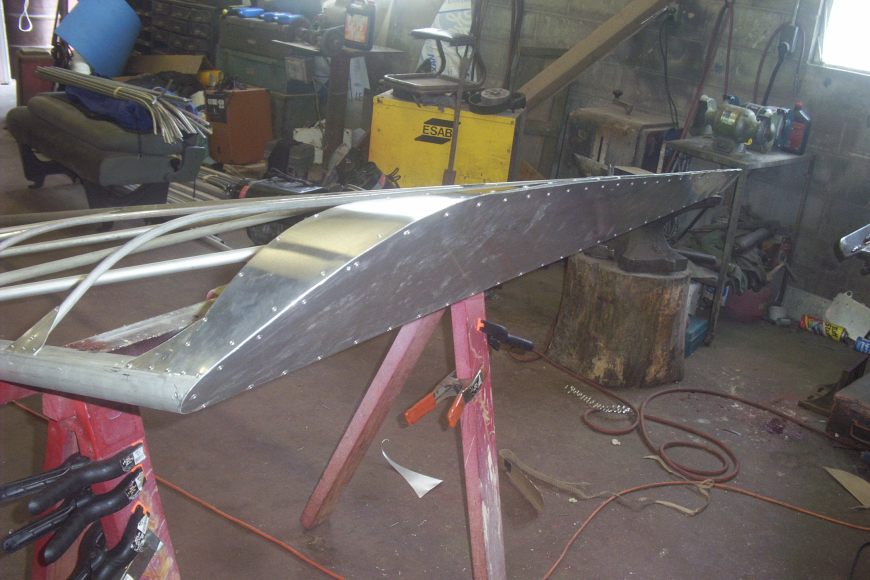

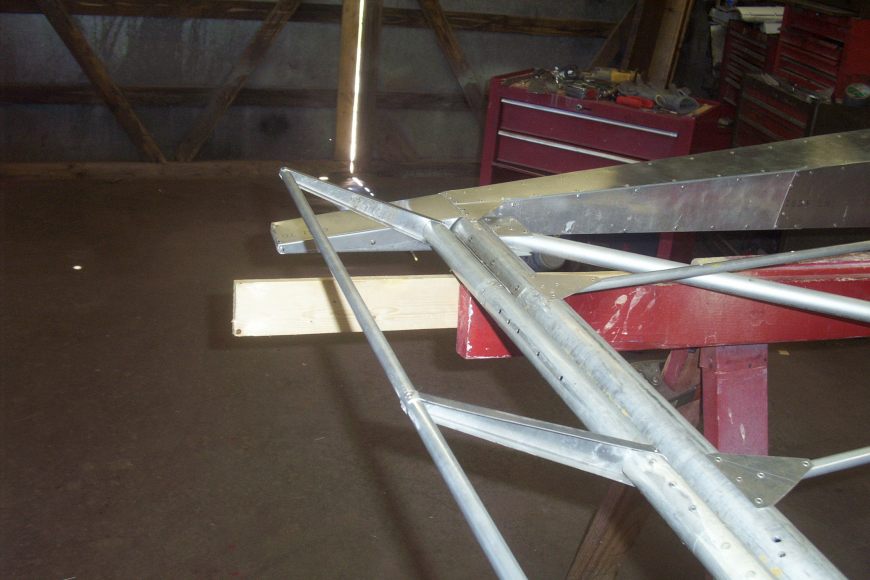

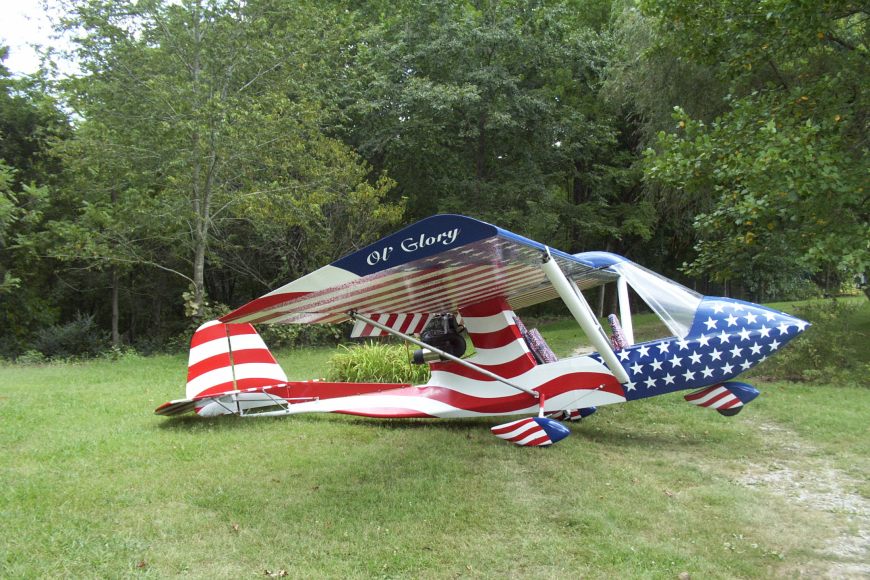

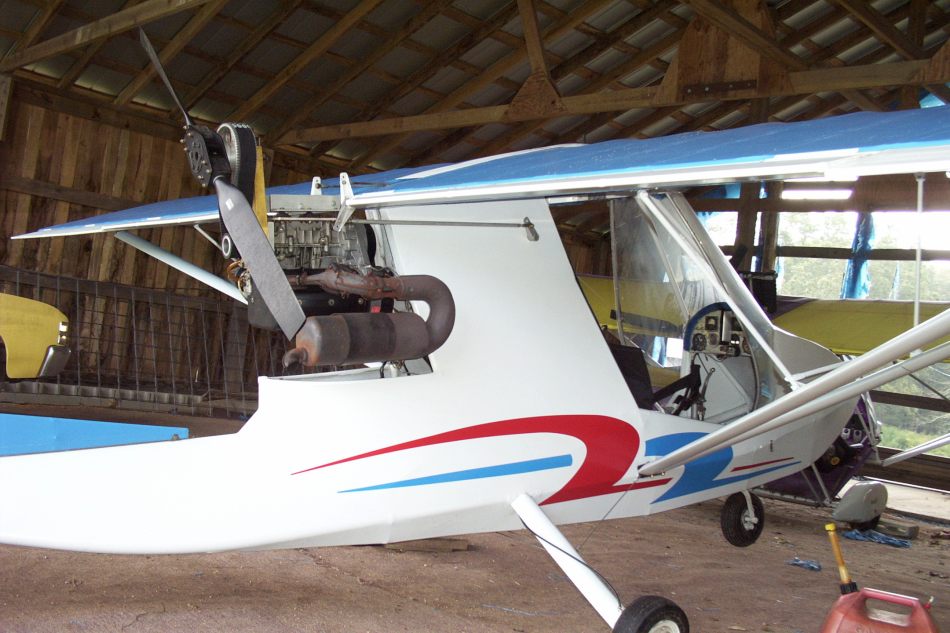

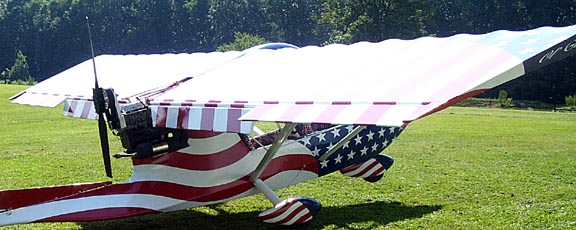

This is an 86 Ch1 long wing rebuilt to a clipped wing w/sq tips. It had a Dacron covered wing with 6 ribs per wing and a 377. It weighed 300#. It now has the tall redrive that I built, 503 DCDI, sq tip 26' wing, strut and leg fairings and electric flaps and weighs 370#. I should test fly it this weekend. I have 1 month to get ready for the trip to the challenger fly-in, about 450 miles. Jay D 8-21-04 |
  |
|
 |

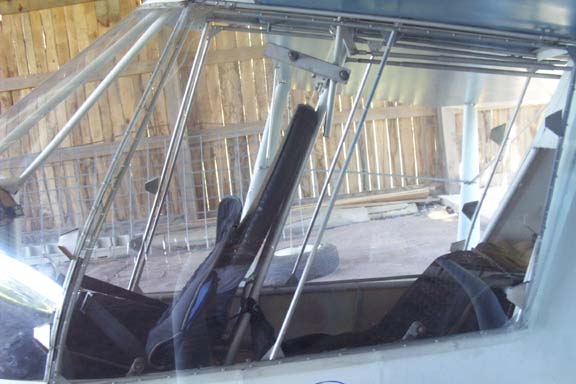

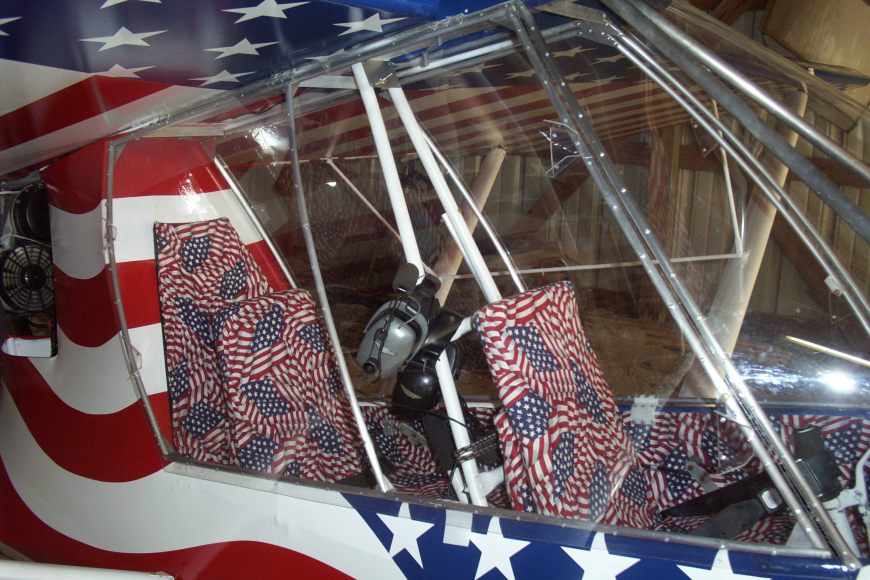

   Door
vortex generators |
 |

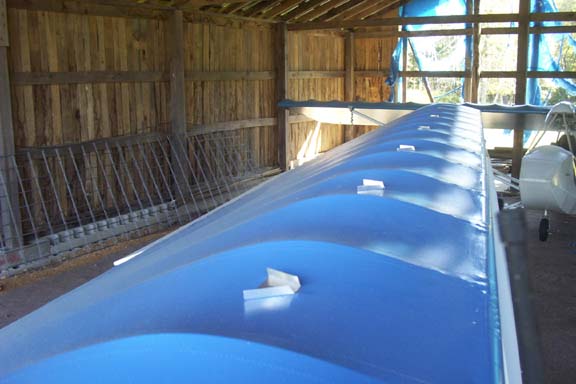

Wing vortex generators |
 |

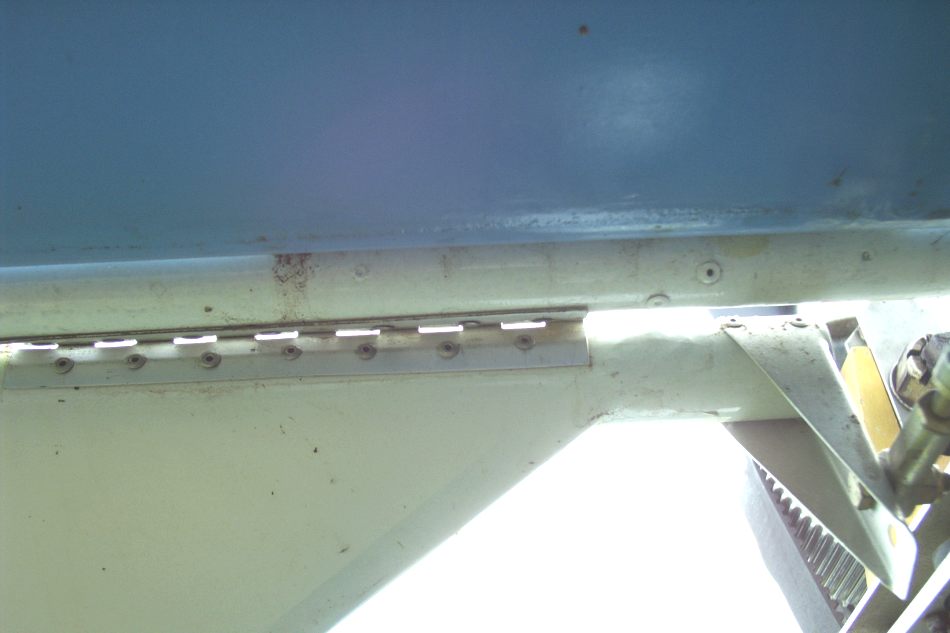

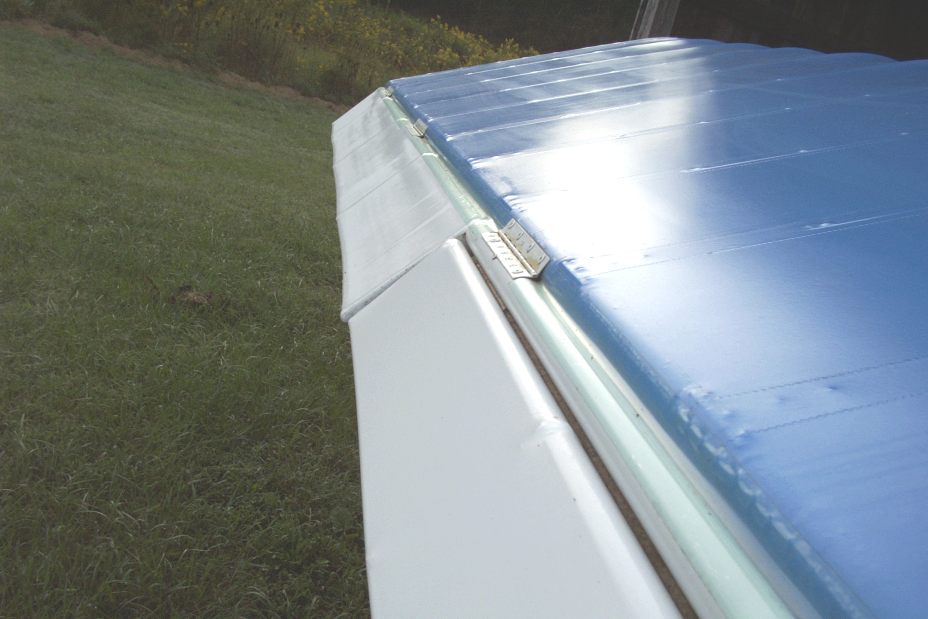

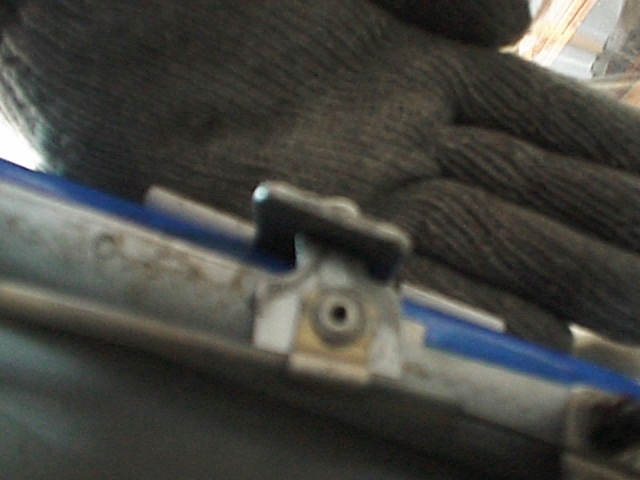

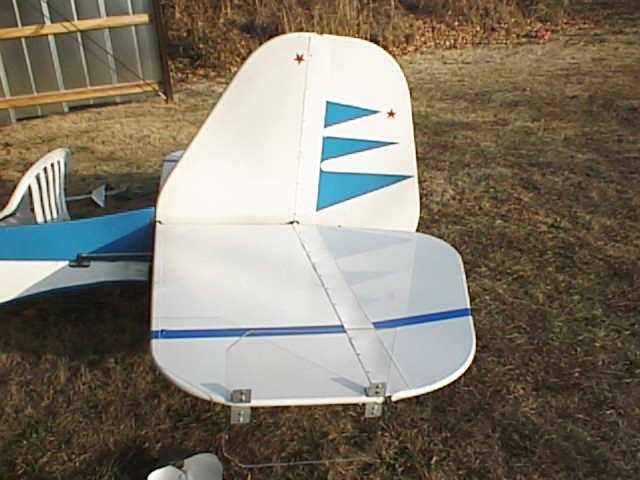

I took some pics of my gap seals. I haven't finished with them yet. I will put white trim tape over the front edge. It is thin plastic. It is secured on the front only. It is riveted so it has pressure on the control surface. You can still pull it back far enough to remove the hinge is needed. |
 |
I cut 45" off the aileron so far. I love the way it flies now. I might cut some more off yet. it doubled the roll rate and cut the yaw in half. It also lowered the stick pressure. The flaperon trim still works the same. |
|
|

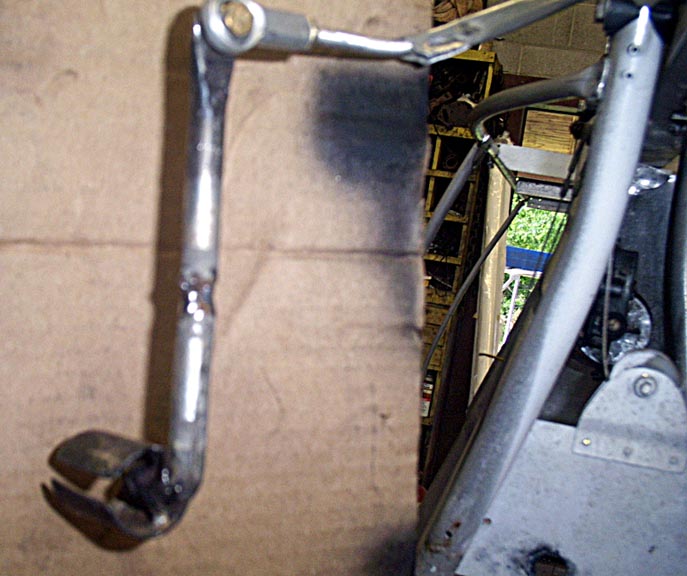

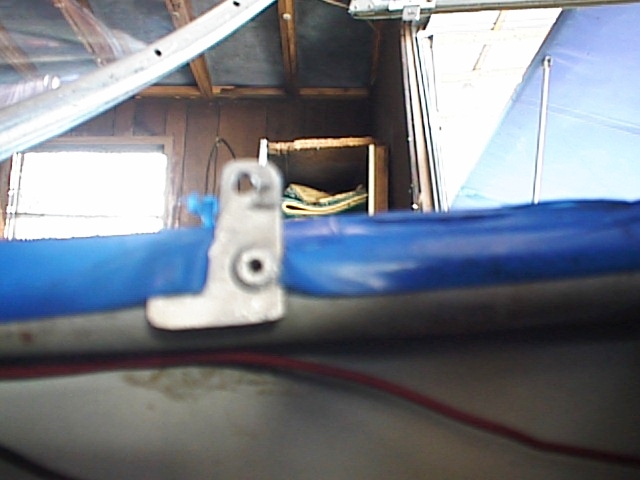

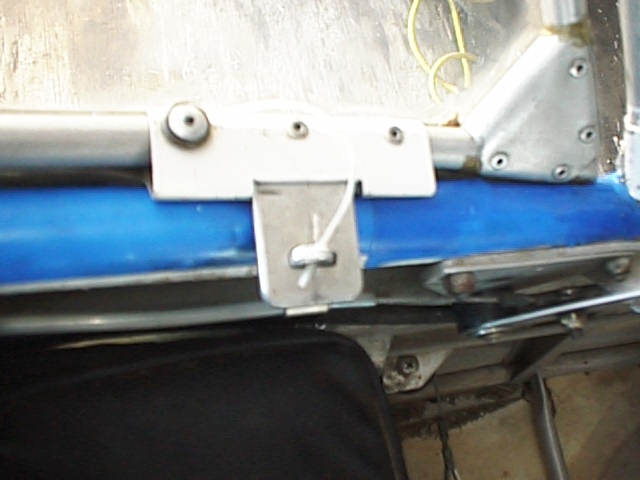

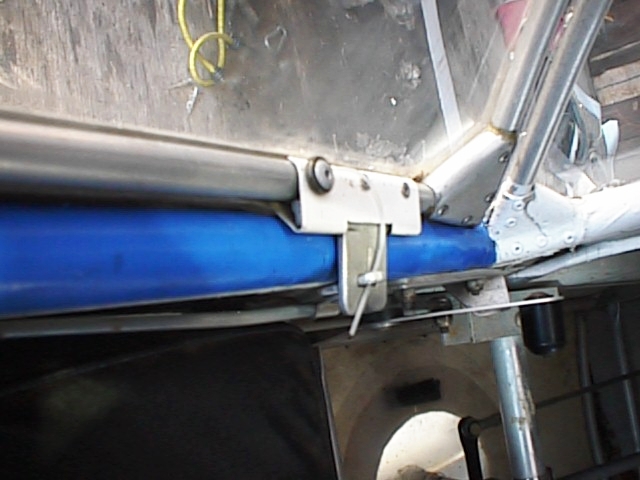

 Door Latch Detail |
 |
 |
 |

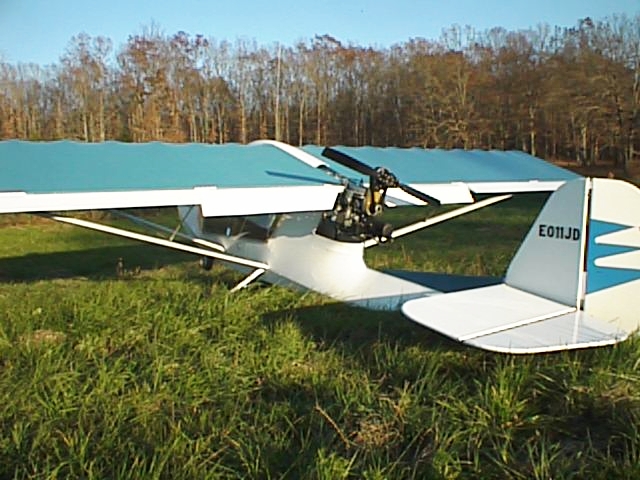

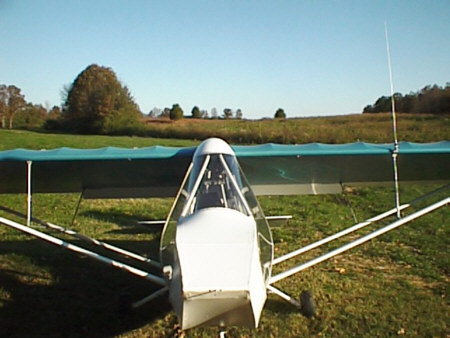

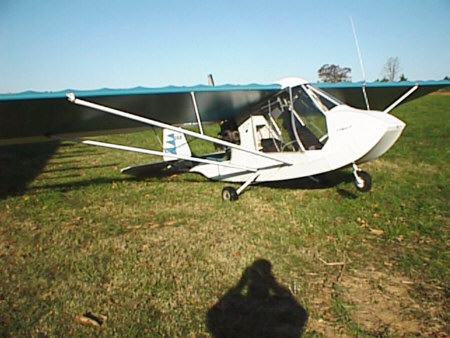

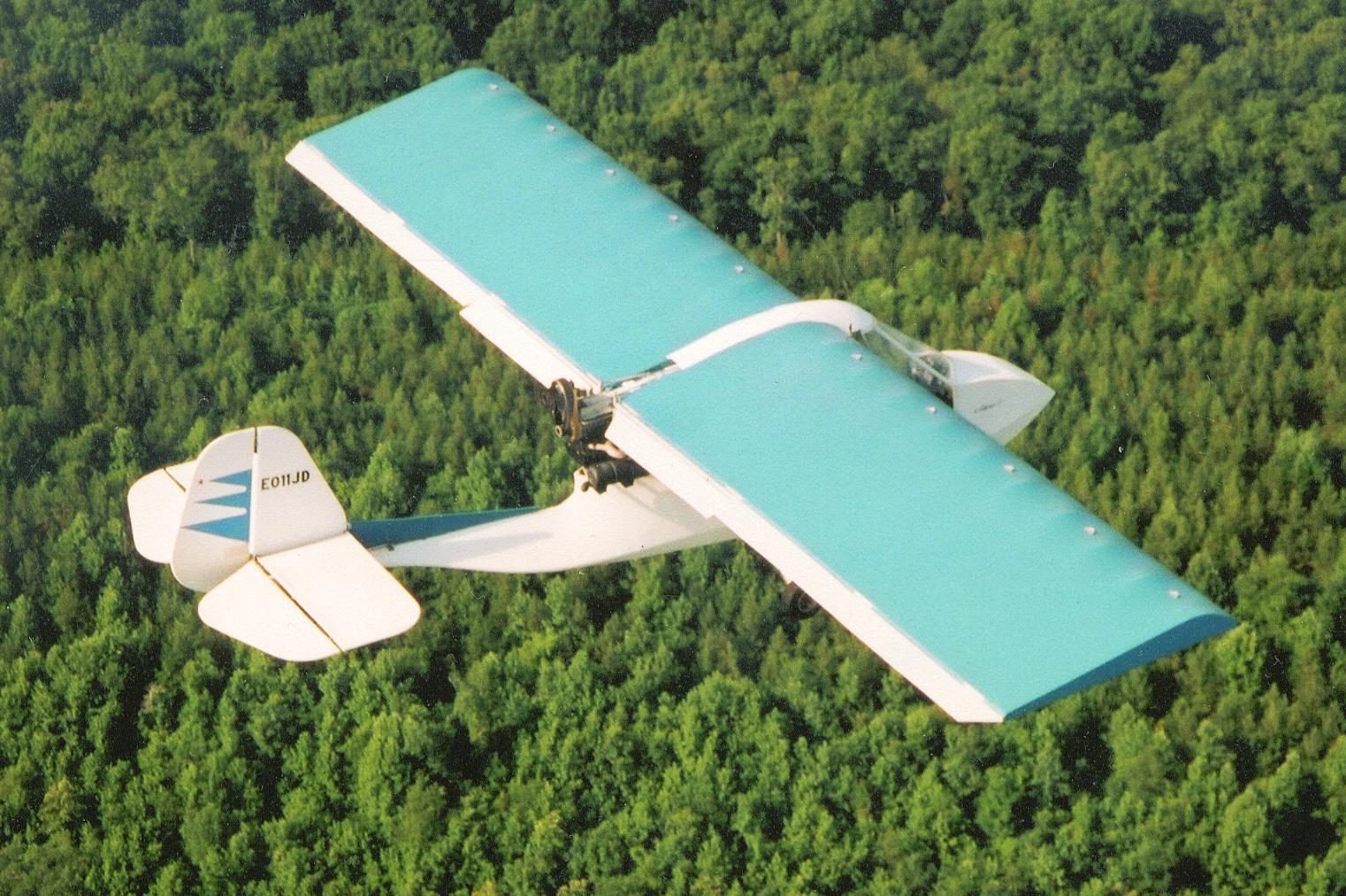

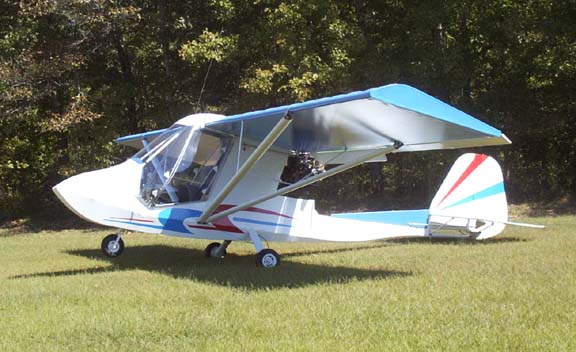

Jay's C-II with flaps and vortex generators. |
 |

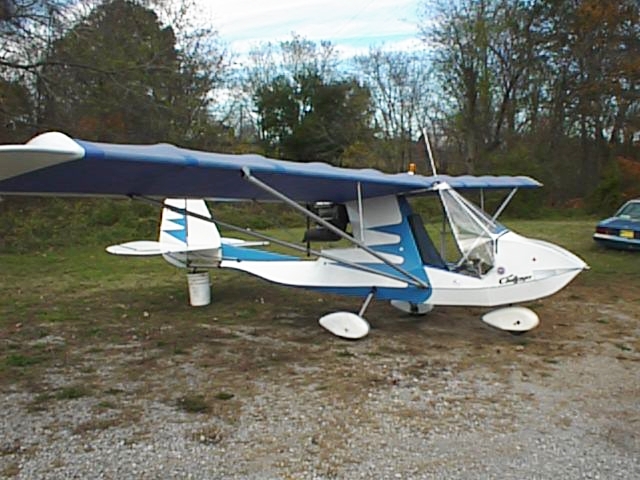

The latex paint still looks good, 3 years later. |
|
|

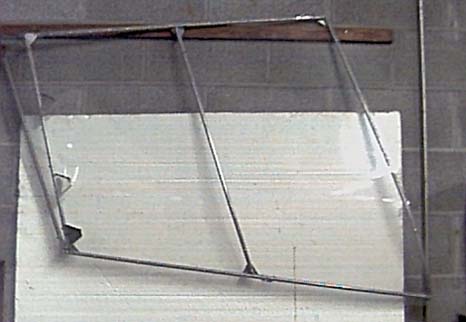

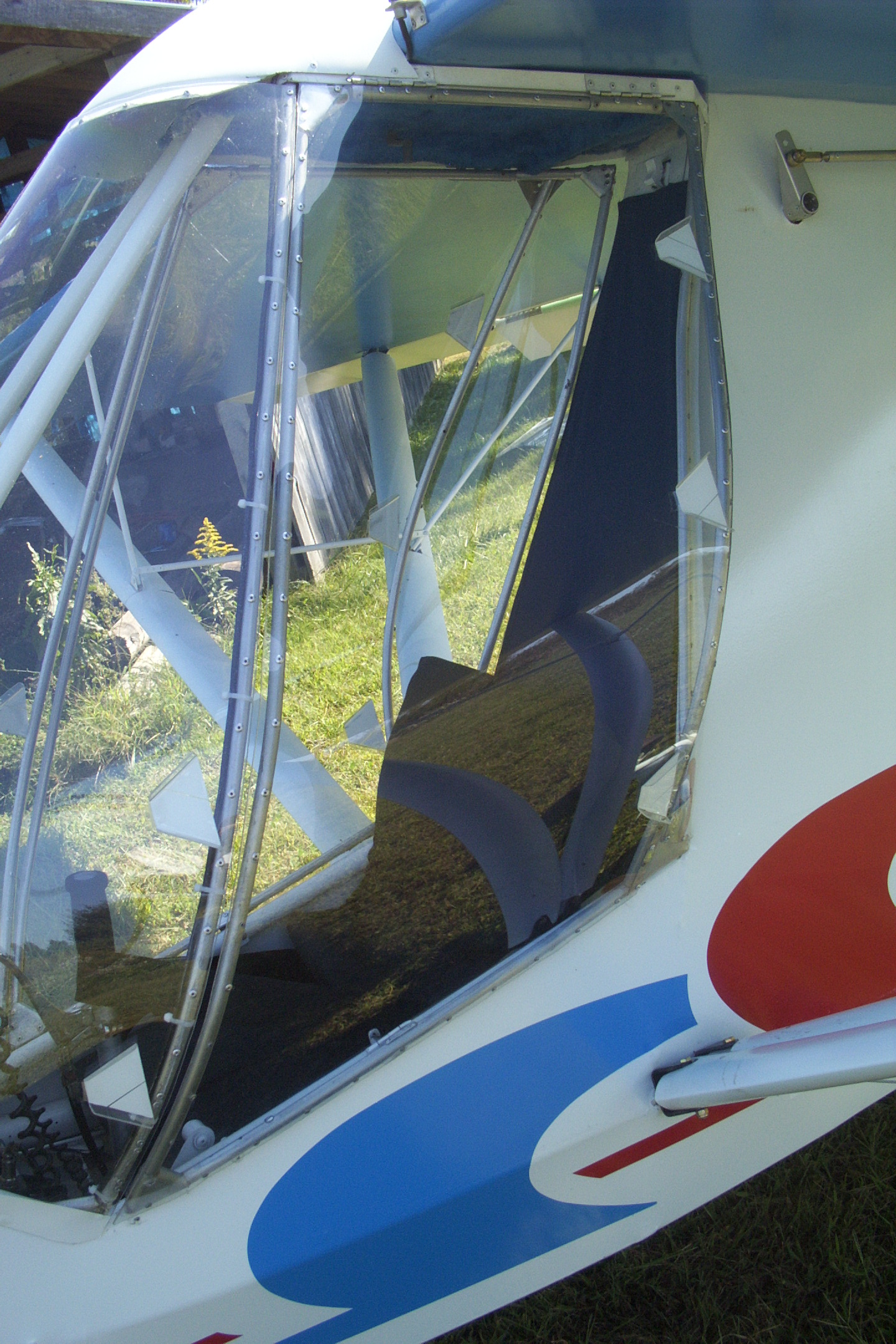

Door vortex generators |
 |

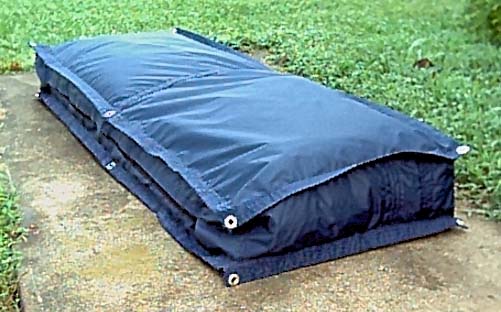

Belly bag |
  |

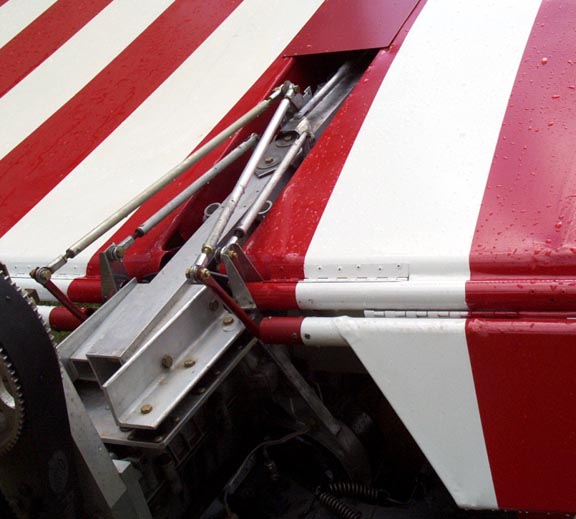

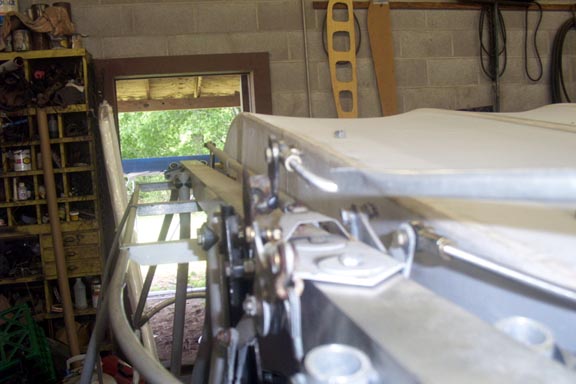

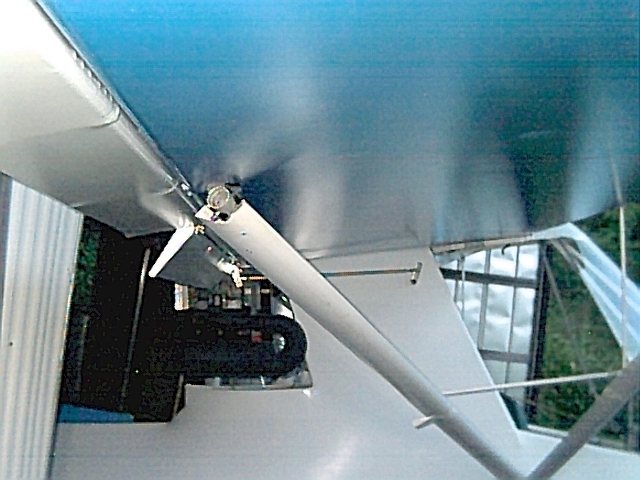

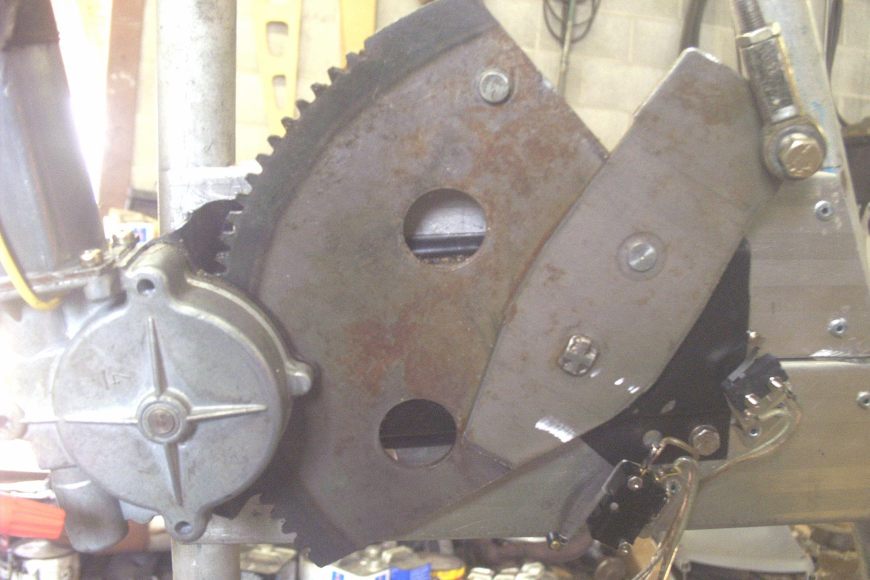

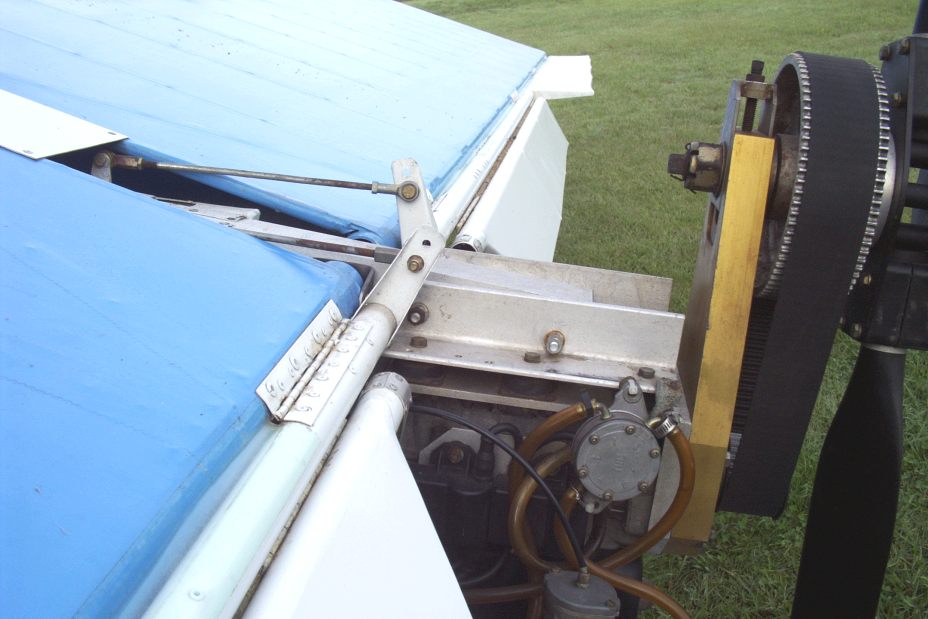

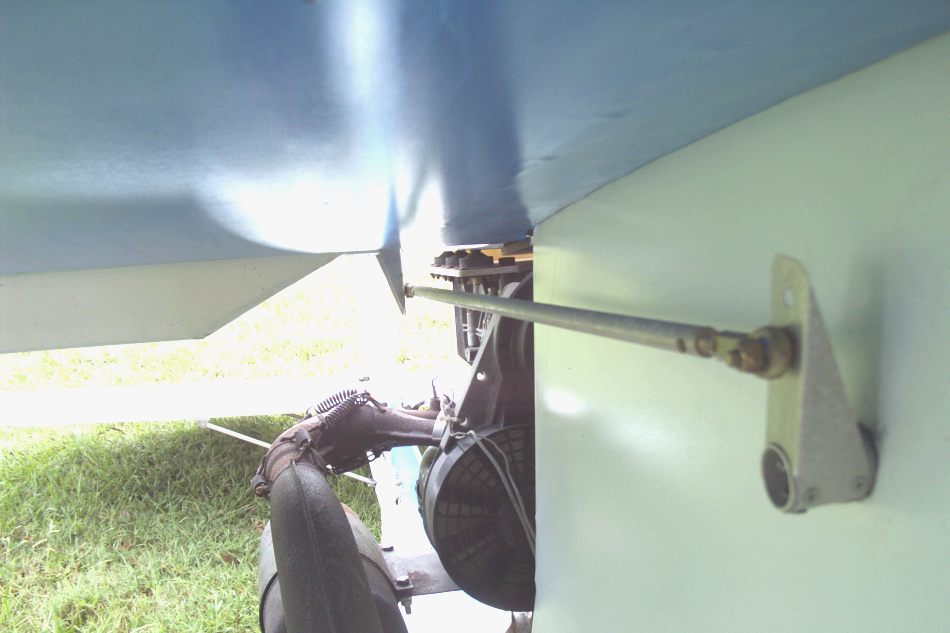

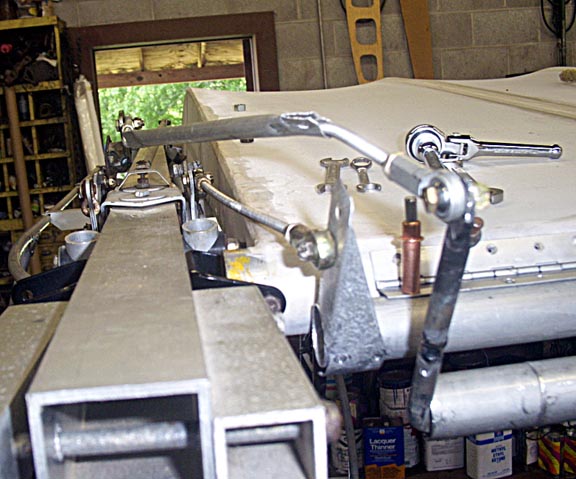

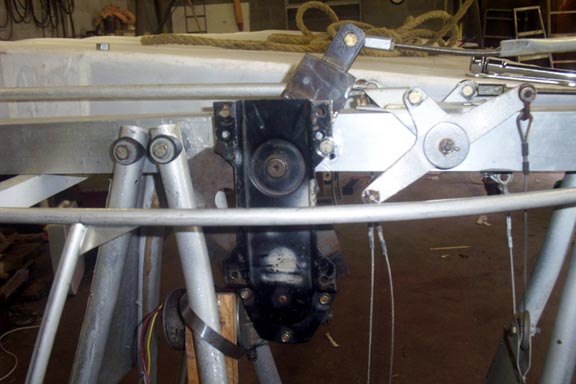

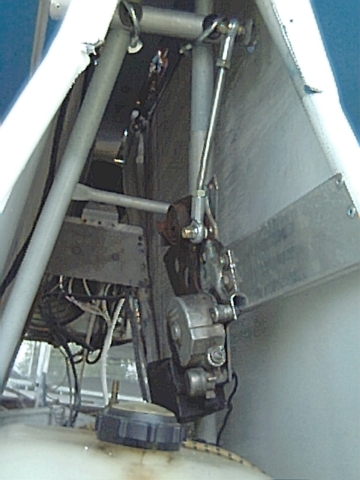

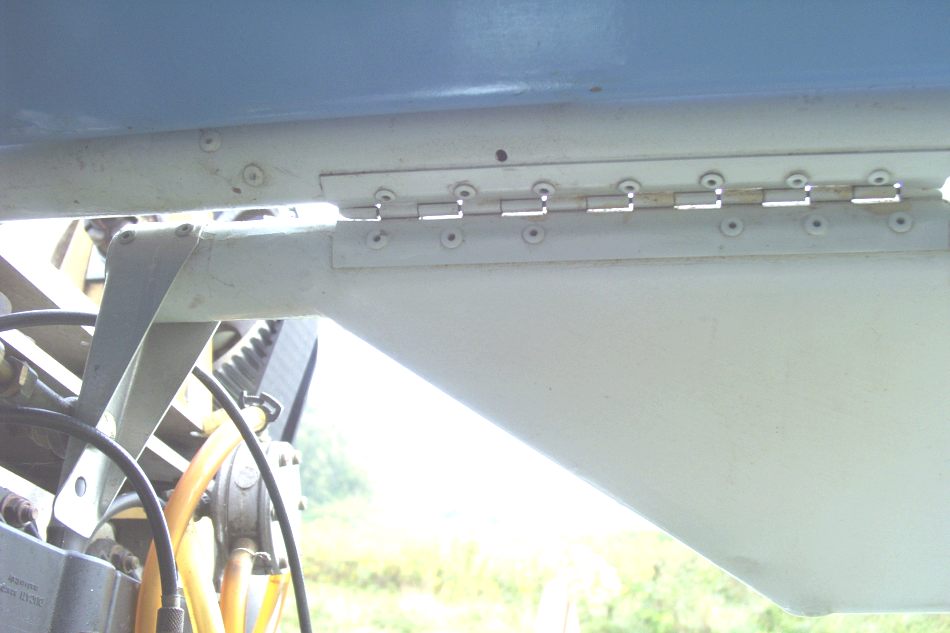

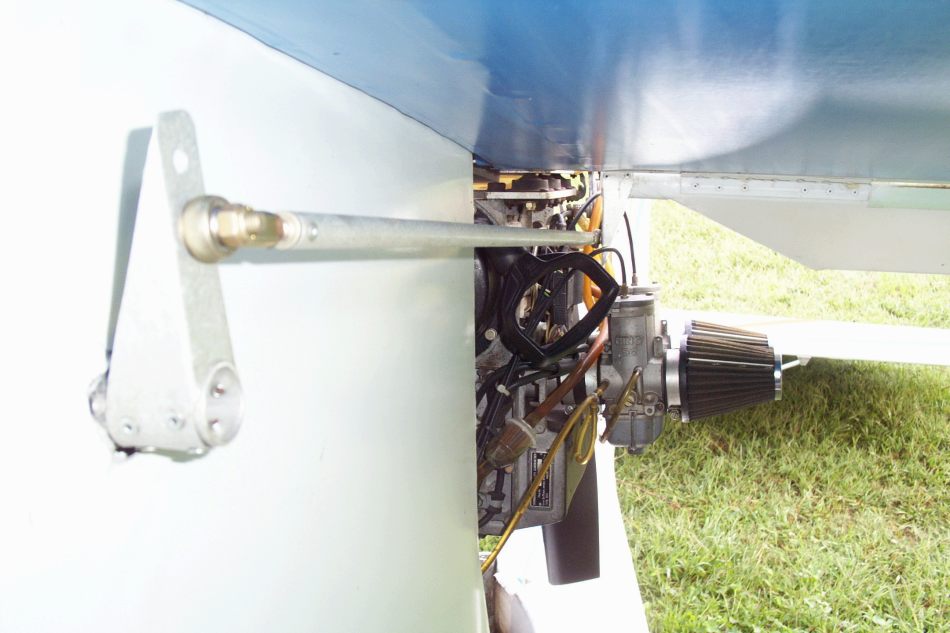

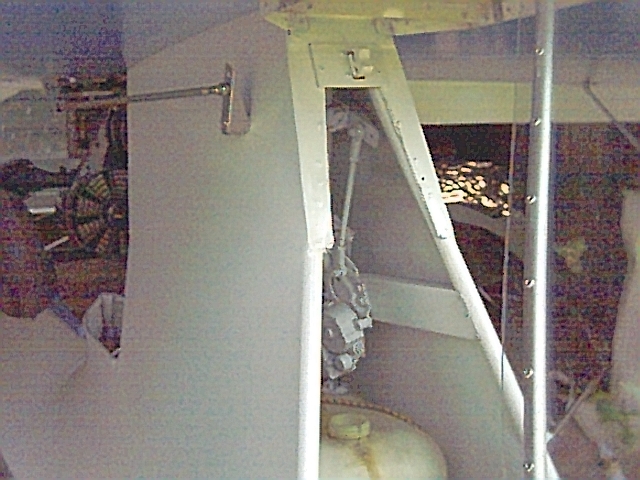

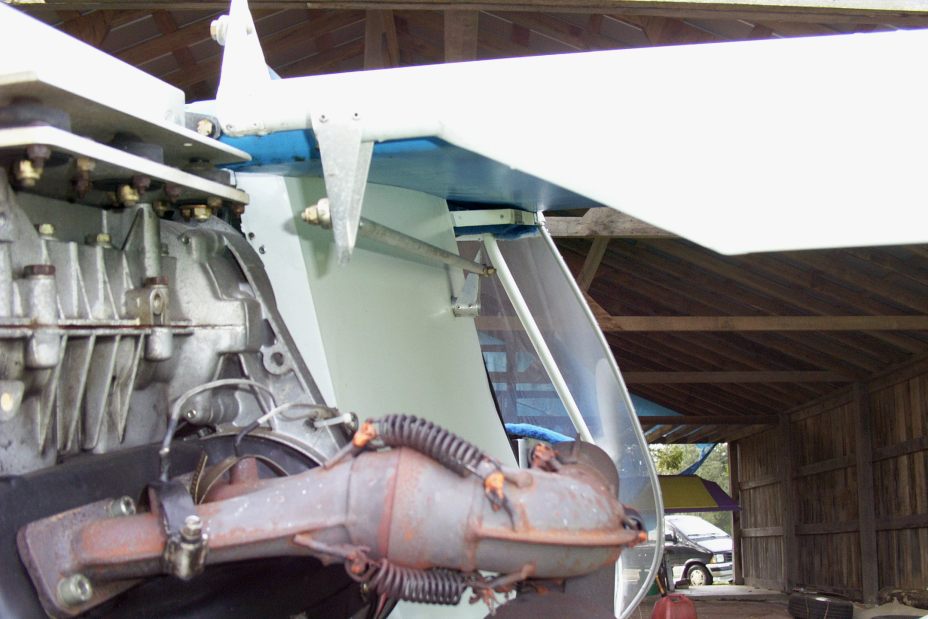

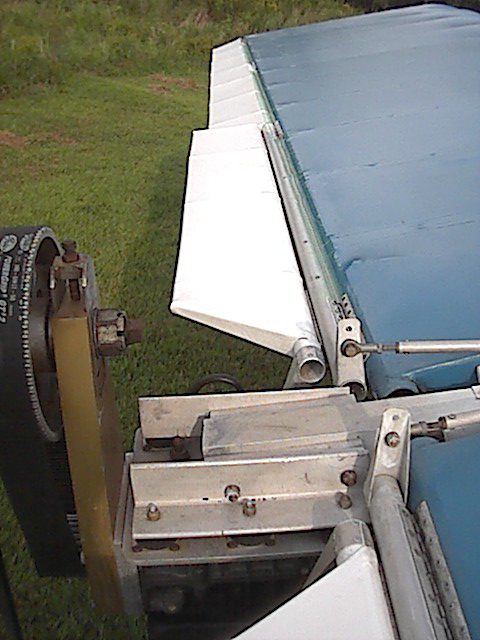

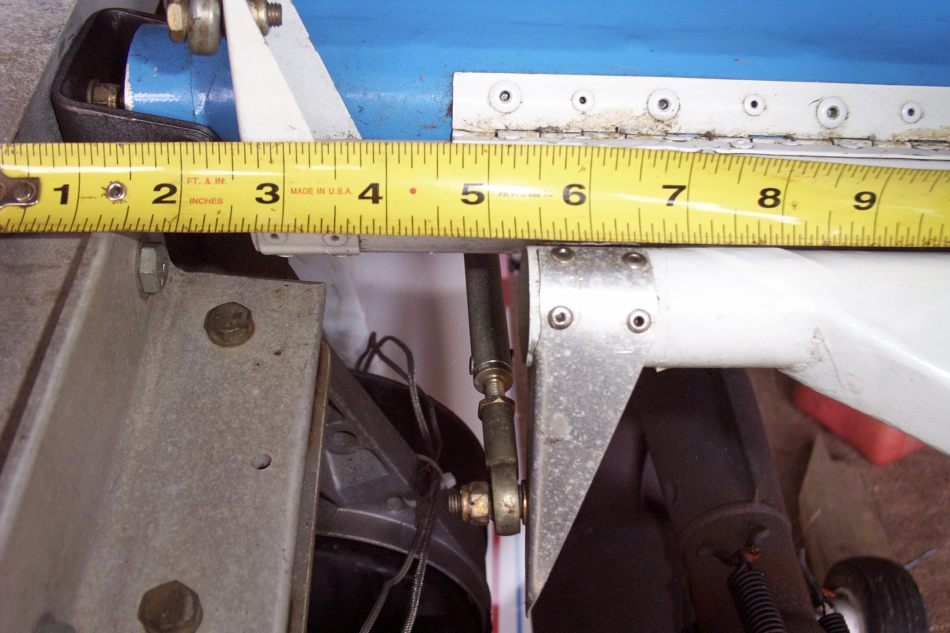

Flaps detail |

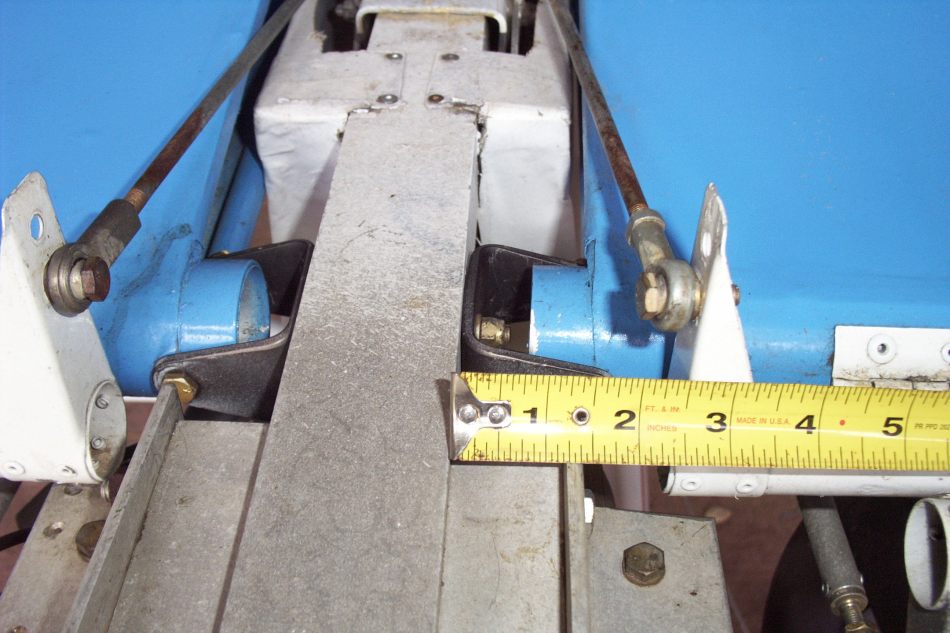

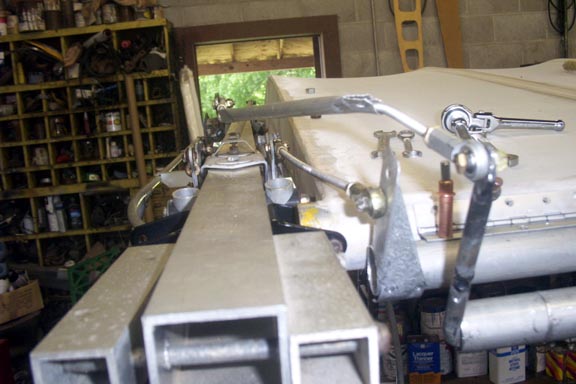

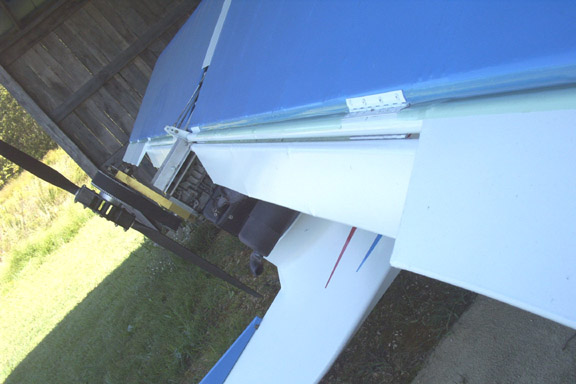

More flap pics:
12/08 Flap Pics
